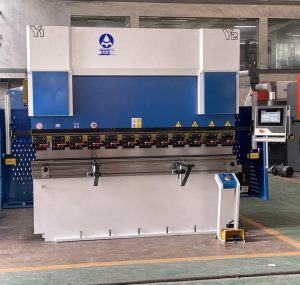

Touch Screen DELEM 53T Controller CNC Hydraulic Press Brake, CNC Automatic Bending Machine for 4+1 Axis

Product Model: WC67Y 110T2500
Customized support: Voltage and color can be customized
Maximum running speed:
Laser power:
Application industry:
CONTROL SYSTEM:Delem53T
Nominal Pressure:1100KN
Length of table :2500mm
Distance between housing:2510MM
Dimension :3450x1740x2450mm

INQUIRY

Product Description and Display Press brake is a kind of machine specially in bending plate, mainly used in automotive manufacturing, kitchen appliance manufacturing, electricity poles, lamp posts, ship-building, military industry, steel industry, mechanical manufacturing. Bending dies can be designed and changed according to customers' different needs.
PRODUCT SPECIFICATIONS Model Nominal Pressure length of table distance between housing throat depth ram strokes strokes Open height mian motor overall dimension (LXWXH) WC67Y/K-30T/1600 300 1600 1280 200 80 ≥16 190 3 1700x900x1650 WC67Y/K-30T/2000 300 2000 1280 200 80 ≥18 190 3 1700x900x1650 WC67Y/K-40T/2500 400 2500 1900 280 100 ≥20 320 5.5 2600x1100x1900 WC67Y/K-63T/2500 630 2500 2050 300 100 ≥12 380 5.5 2605x1725x2355 WC67Y/K-63T/3200 630 3200 2670 250 100 ≥10 395 7.5 3300x1725x2355 WC67Y/K-80T/2500 800 2500 2050 250 140 ≥10 395 7.5 2605x1725x2355 WC67Y/K-80T/3200 800 3200 2660 250 140 ≥10 395 7.5 3300x1725x2355 WC67Y/K-100T/2500 1000 2500 2050 320 140 ≥8 395 7.5 2600x1800x2540 WC67Y/K-100T/3200 1000 3200 2660 320 140 ≥8 395 7.5 3290x1740x2400 WC67Y/K-100T/4000 1000 4000 3060 320 140 ≥8 395 7.5 4090x1740x2500 WC67Y/K-125T/3200 1250 3200 2510 320 140 ≥8 395 7.5 3450x1740x2450 WC67Y/K-125T/4000 1250 4000 3160 320 140 ≥8 395 7.5 3450x1740x2450 WC67Y/K-160T/3200 1600 3200 2540 330 200 ≥6 457 11 3280x1930x2800 WC67Y/K-160T/4000 1600 4000 3140 330 200 ≥6 457 11 4080x1930x2800 WC67Y/K-200T/4000 2000 4000 3140 330 200 ≥6 457 11 4080x1930x2800 WC67Y/K-250T/4000 2500 4000 3140 330 200 ≥6 457 11 4580x1930x2800 WC67Y/K-300T/4000 3000 4000 3070 400 250 ≥3 630 23 4500x2200x3300 WC67Y/K-300T/5000 3000 5000 3900 400 250 ≥3 630 26 5550x2200x3300 WC67Y/K-400T/4000 4000 4000 3000 400 300 ≥2.5 770 26 4550x2600x3500 WC67Y/K-400T/5000 4000 5000 3900 400 300 ≥2.5 770 30 5550x2800x3800 WC67Y/K-400T/6000 400 6000 4900 400 300 ≥2.5 770 36 6550x2800x3800 WC67Y/K-500T/4000 5000 4000 3000 450 350 ≥2.5 860 37 4550x2800x3800 WC67Y/K-500T/5000 5000 5000 3900 450 350 ≥2.5 860 46 5550x2800x3800 WC67Y/K-500T/6000 5000 6000 4900 450 350 ≥2.5 860 55 6500x2800x3800 WC67Y/K-600T/6000 6000 6000 4900 450 350 ≥2.5 860 60 6550x3000x4200
CONTROL SYSTEM Delem 53T: 1. For the backing material (X) of the bending machine, the position of the block in the left and right cylinders (Y1, Y2), the lifting position of the rear block (R), the left and right gears (Z1, Z2), the pressure (P) and the deflection compensation(Hydraulic, mechanical) (V) for automatic positioning control. 2. The parameters can be set to single side and bilateral positioning mode, and the single side positioning mode can effectively eliminate the screw drive gap. 3. The system has a soft limit function. 4. Power-off position memory function. 5. The display scale factor can be set according to the screw pitch and the transmission ratio. The display scale factor can be automatically calculated by the numerical control system through the teaching operation function, and the operation is very simple. 6, single step insert mode, very practical and convenient. 7, multi-step programming function, can achieve multi-step automatic operation. 8. Retreat the escape function to avoid interference between the back gauge device and the workpiece to reduce wear. 9, integrated pump start and switch adjustment, single, continuous function in the system. 10. With password protection. 11, large arc programming function. 12, IO port flexible configuration and valve group configuration function. 13. The raster real-time feedback slider position.
PRODUCT CONFIGURATION ※ Germany Rexroth valve group ※ Pipe joint Germany EMB ※ Sunny oil pump, the US ※ Ball screw linear guide, Tawan(China) ※ Schneider Electric System, France ※ a set of mold for free (if you want a customized mold, just tell us, we can customized them for you.) ※ Front support ※ High accuracy backguage ※ Side guardrail and rear guardrail(Optional) ※ Light curtain protection and Laser protection (Optional) ※ Foot switch ※ Or can be customized by your requirements

Related products

Touch Screen DELEM 53T Controller CNC Hydraulic Press Brake, CNC Automatic Bending Machine for 4+1 Axis

Product Description and Display

PRODUCT SPECIFICATIONS

CONTROL SYSTEM

PRODUCT CONFIGURATION

※ Germany Rexroth valve group

※ Pipe joint Germany EMB

※ Sunny oil pump, the US

※ Ball screw linear guide, Tawan(China)

※ Schneider Electric System, France

※ a set of mold for free (if you want a customized mold, just tell us, we can customized them for you.)

※ Front support

※ High accuracy backguage

※ Side guardrail and rear guardrail(Optional)

※ Light curtain protection and Laser protection (Optional)

※ Foot switch

※ Or can be customized by your requirements

Related products

Free to contact us

contact us for a quote

Thank you for visiting Aoxuan. For more information about our solutions, please fill out and submit the form, and we will contact you as soon as possible.

TO : alice@ahaxzg.com

Free To Contact Us

Model	Nominal Pressure	length of table	distance between housing	throat depth	ram strokes	strokes	Open height	mian motor	overall dimension (LXWXH)
WC67Y/K-30T/1600	300	1600	1280	200	80	≥16	190	3	1700x900x1650
WC67Y/K-30T/2000	300	2000	1280	200	80	≥18	190	3	1700x900x1650
WC67Y/K-40T/2500	400	2500	1900	280	100	≥20	320	5.5	2600x1100x1900
WC67Y/K-63T/2500	630	2500	2050	300	100	≥12	380	5.5	2605x1725x2355
WC67Y/K-63T/3200	630	3200	2670	250	100	≥10	395	7.5	3300x1725x2355
WC67Y/K-80T/2500	800	2500	2050	250	140	≥10	395	7.5	2605x1725x2355
WC67Y/K-80T/3200	800	3200	2660	250	140	≥10	395	7.5	3300x1725x2355
WC67Y/K-100T/2500	1000	2500	2050	320	140	≥8	395	7.5	2600x1800x2540
WC67Y/K-100T/3200	1000	3200	2660	320	140	≥8	395	7.5	3290x1740x2400

WC67Y/K-100T/4000	1000	4000	3060	320	140	≥8	395	7.5	4090x1740x2500
WC67Y/K-125T/3200	1250	3200	2510	320	140	≥8	395	7.5	3450x1740x2450
WC67Y/K-125T/4000	1250	4000	3160	320	140	≥8	395	7.5	3450x1740x2450
WC67Y/K-160T/3200	1600	3200	2540	330	200	≥6	457	11	3280x1930x2800
WC67Y/K-160T/4000	1600	4000	3140	330	200	≥6	457	11	4080x1930x2800
WC67Y/K-200T/4000	2000	4000	3140	330	200	≥6	457	11	4080x1930x2800
WC67Y/K-250T/4000	2500	4000	3140	330	200	≥6	457	11	4580x1930x2800
WC67Y/K-300T/4000	3000	4000	3070	400	250	≥3	630	23	4500x2200x3300
WC67Y/K-300T/5000	3000	5000	3900	400	250	≥3	630	26	5550x2200x3300
WC67Y/K-400T/4000	4000	4000	3000	400	300	≥2.5	770	26	4550x2600x3500

WC67Y/K-400T/5000	4000	5000	3900	400	300	≥2.5	770	30	5550x2800x3800
WC67Y/K-400T/6000	400	6000	4900	400	300	≥2.5	770	36	6550x2800x3800
WC67Y/K-500T/4000	5000	4000	3000	450	350	≥2.5	860	37	4550x2800x3800
WC67Y/K-500T/5000	5000	5000	3900	450	350	≥2.5	860	46	5550x2800x3800
WC67Y/K-500T/6000	5000	6000	4900	450	350	≥2.5	860	55	6500x2800x3800
WC67Y/K-600T/6000	6000	6000	4900	450	350	≥2.5	860	60	6550x3000x4200
